| Part number: | P36S106 |

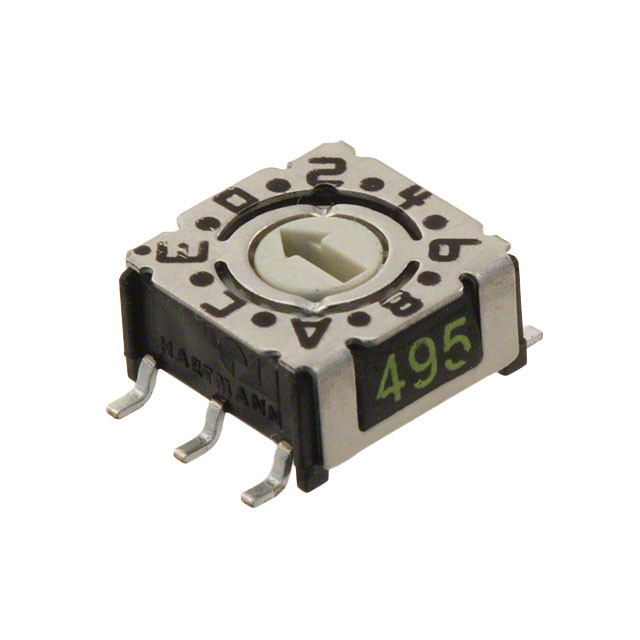

| Description: | SW ROTARY DIP HEX COMP 0.1A 24V |
| Manufacturer | APEM Inc. |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "APEM Inc." |
| Features | Sealed - Flux Protection |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Current Rating (Amps) | 100mA |
| Mounting Type | Surface Mount |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | Hexadecimal Complement |
| Operating Temperature | -30°C ~ 90°C |
| Termination Style | Gull Wing |
| Actuator Type | Rotary for Tool |
| Height Above Board | 0.152" (3.85mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Phosphor Bronze |
| Number of Positions | 16 |
|
