| Part number: | PT65121 |

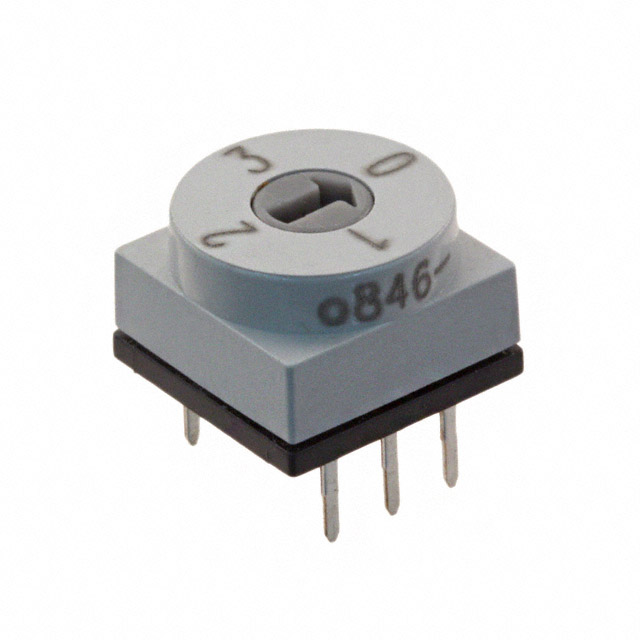

| Description: | SWITCH ROTARY DIP SP4T 0.15A 24V |
| Manufacturer | APEM Inc. |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "APEM Inc." |
| Features | Sealed - Flux Protection |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Current Rating (Amps) | 150mA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SP4T |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | PC Pin |
| Actuator Type | Rotary for Tool |
| Height Above Board | 0.256" (6.50mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Phosphor Bronze |
| Number of Positions | 4 |
|
