| Part number: | TM141041 |

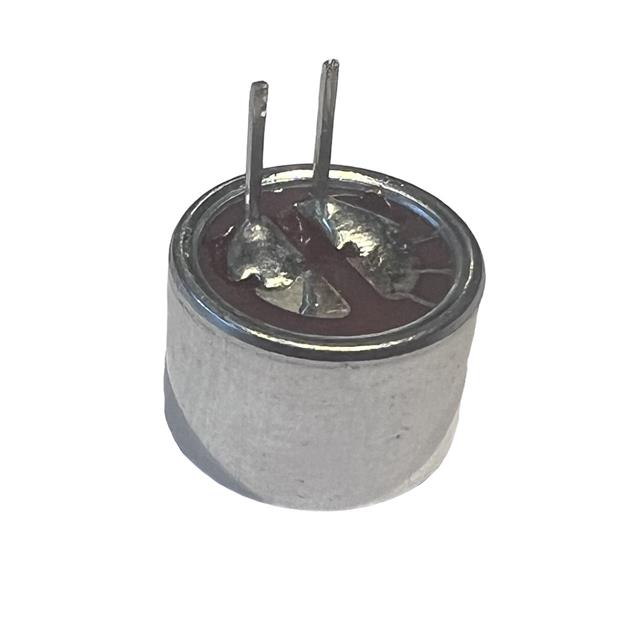

| Description: | Omni Microphone |
| Manufacturer | Top Shelf Acoustics |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Top Shelf Acoustics" |
| Output Type | Analog |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Sensitivity | -44dB ±2dB |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 60dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Bottom |
| Height (Max) | 0.264" (6.70mm) |
| Voltage - Rated | 1.5 V |
| Impedance | 1.5 kOhms |
| Current - Supply | 75 µA |
| Voltage Range | 1 V ~ 10 V |
| Frequency Range | 50 Hz ~ 10 kHz |
|
