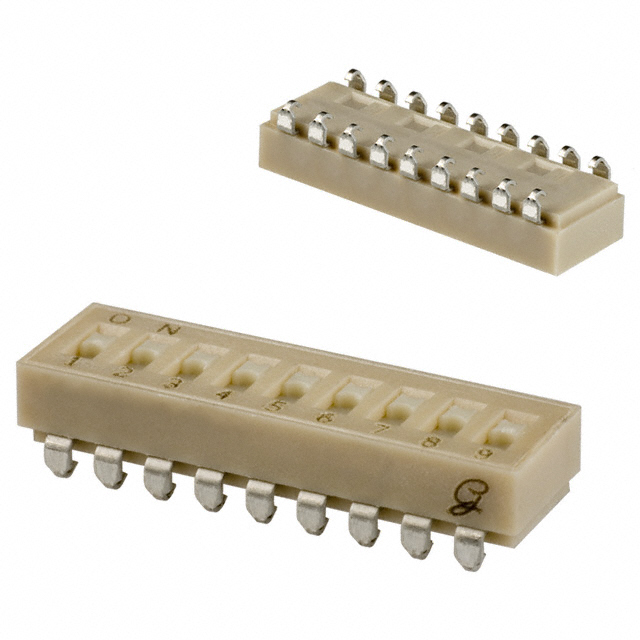

| Part number: | 90HBJ09P |
| Description: | SWITCH SLIDE DIP SPST 0.025A 24V |
| Manufacturer | Grayhill, Inc. |
| Encapsulation | Bag |
| Quantity | 18 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Grayhill, Inc." |
| Features | Tape Seal |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Current Rating (Amps) | 25mA |
| Mounting Type | Surface Mount |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.220" (5.59mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Copper Alloy |
| Number of Positions | 9 |
|
