| Part number: | FGA15N120FTDTU |
| Description: | IGBT 1200V 30A 220W TO3PN |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

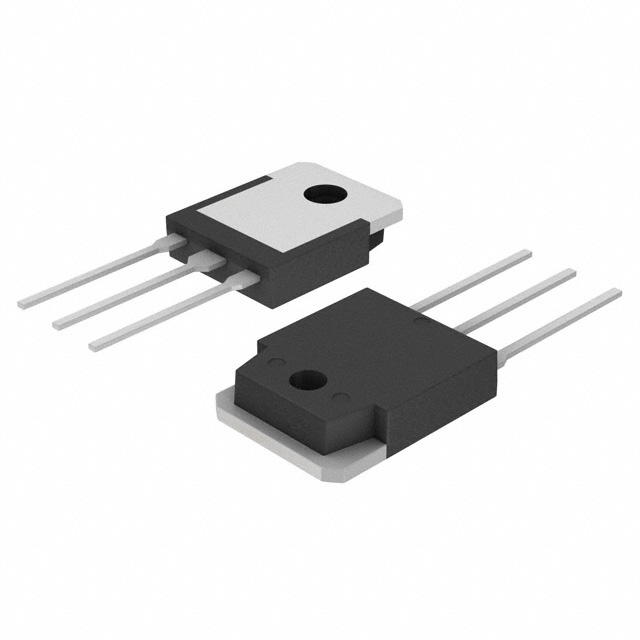

| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 575 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 15A |
| Supplier Device Package | TO-3P |
| IGBT Type | Trench Field Stop |
| Gate Charge | 100 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 45 A |
| Power - Max | 220 W |
|
