| Part number: | ESY566M035AE3AA |

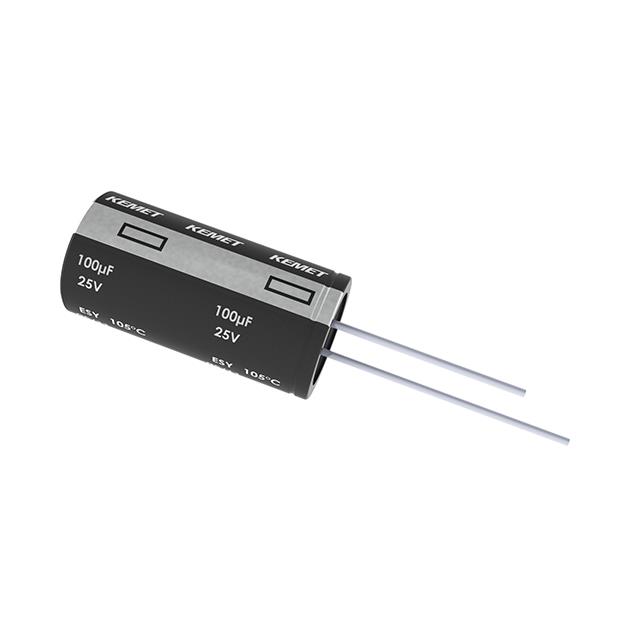

| Description: | CAP ALUM RAD 105C LOW ESR/IMPD |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Bulk |
| Quantity | 10000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.098" (2.50mm) |
| ESR (Equivalent Series Resistance) | 130mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Capacitance | 56 µF |
| Voltage - Rated | 35 V |
| Impedance | 130 mOhms |
| Ripple Current @ Low Frequency | 287 mA @ 120 Hz |
| Ripple Current @ High Frequency | 410 mA @ 100 kHz |
|
