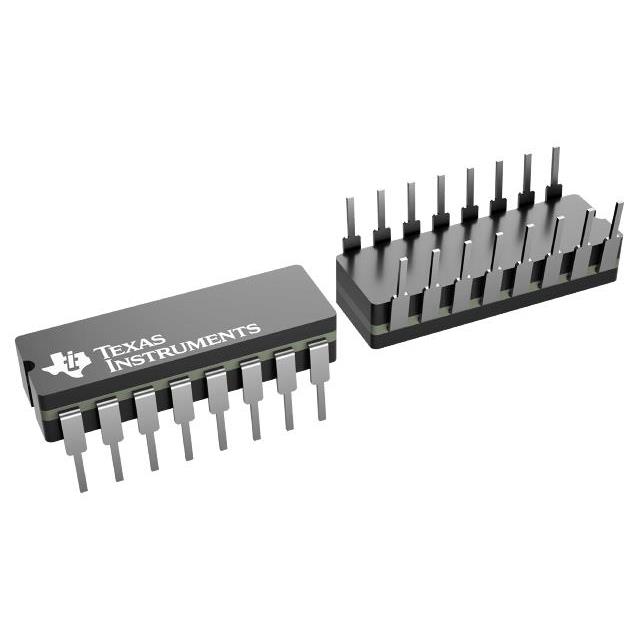

| Part number: | CD54ACT174F3A |
| Description: | HEX D FLIP-FLOPS WITH RESET 16-C |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Output Type | Non-Inverted |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Function | Master Reset |
| Type | D-Type |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 8 µA |
| Current - Output High, Low | 24mA, 24mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 80 MHz |
| Input Capacitance | 10 pF |
| Supplier Device Package | 16-CDIP |
| Max Propagation Delay @ V, Max CL | 14ns @ 5V, 50pF |
| Number of Bits per Element | 6 |
|
