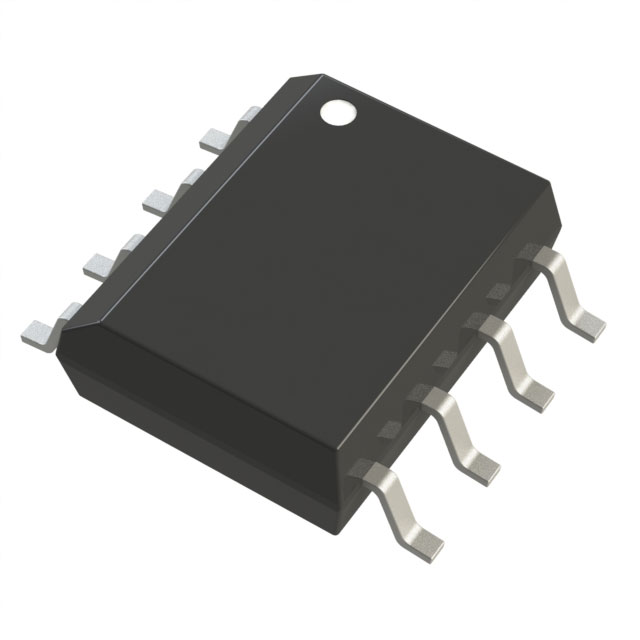

| Part number: | ACS714LLCTR-30A-T |
| Description: | SENSOR CURRENT HALL 30A AC/DC |
| Manufacturer | Allegro MicroSystems |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Allegro MicroSystems" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Polarization | Bidirectional |
| Sensitivity | 66mV/A |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 80kHz |
| Accuracy | ±1.5% |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 5V |
| Response Time | 3.5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 13mA |
| Current - Sensing | 30A |
| Supplier Device Package | 8-SOIC |
| Number of Channels | 1 |
|
