| Part number: | IRG4RC10UDTRLP |
| Description: | IGBT 600V 8.5A TO252AA |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

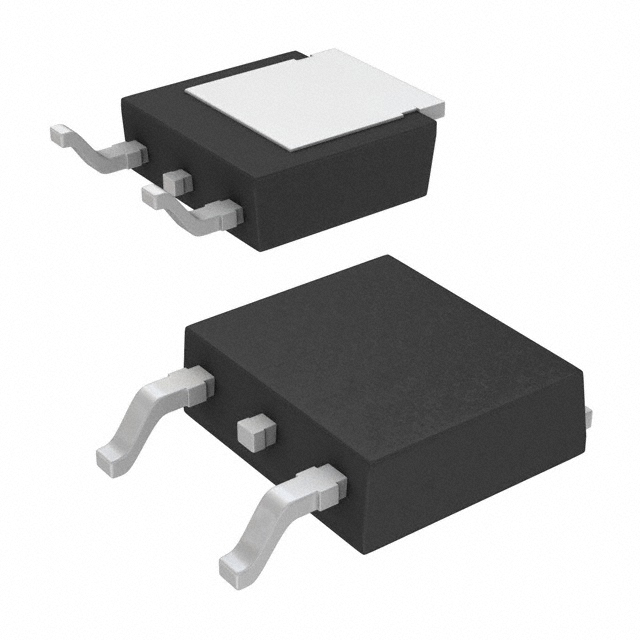

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 28 ns |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 5A |
| Supplier Device Package | TO-252AA (DPAK) |
| Td (on/off) @ 25°C | 40ns/87ns |
| Switching Energy | 140µJ (on), 120µJ (off) |
| Test Condition | 480V, 5A, 100Ohm, 15V |
| Gate Charge | 15 nC |
| Current - Collector (Ic) (Max) | 8.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 34 A |
| Power - Max | 38 W |
|
