| Part number: | STGPL6NC60D |
| Description: | IGBT 600V 14A 56W TO220 |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

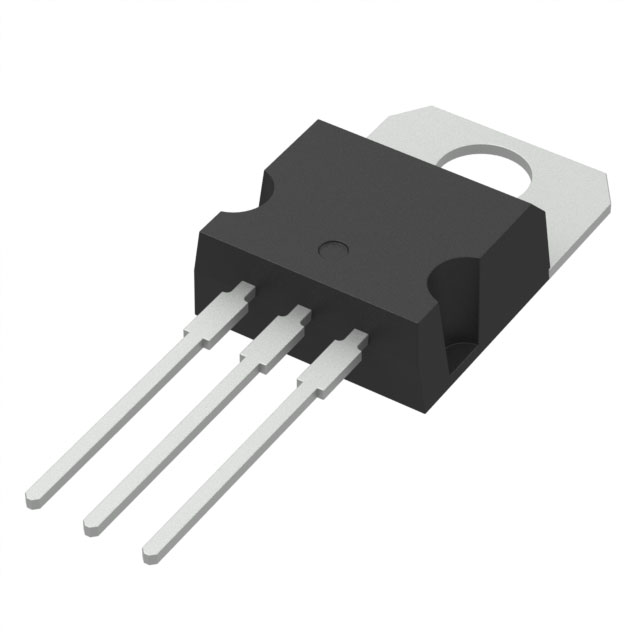

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 50 ns |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 3A |
| Supplier Device Package | TO-220 |
| Td (on/off) @ 25°C | 6.7ns/46ns |
| Switching Energy | 46.5µJ (on), 23.5µJ (off) |
| Test Condition | 390V, 3A, 10Ohm, 15V |
| Gate Charge | 12 nC |
| Current - Collector (Ic) (Max) | 14 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 18 A |
| Power - Max | 56 W |
|
