| Part number: | NSM21356DW6T1G |
| Description: | TRANS NPN PREBIAS/PNP SOT363 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

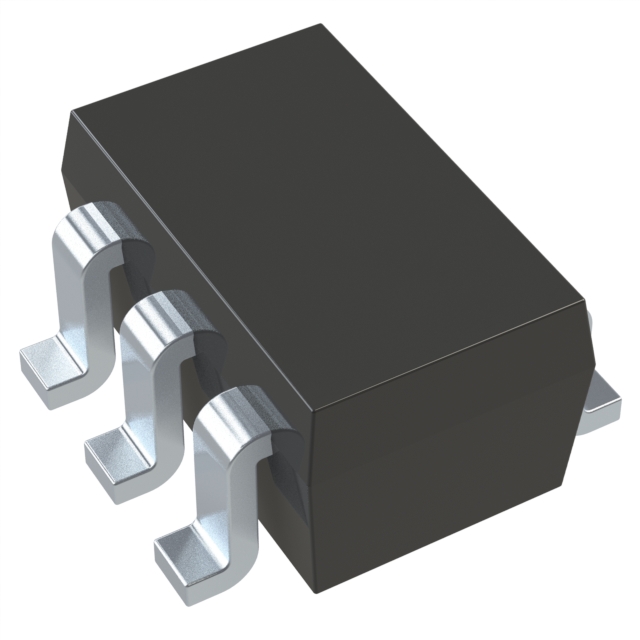

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Power - Max | 230mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 65V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA / 650mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V / 220 @ 2mA, 5V |
| Resistor - Base (R1) | 47kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
|
