| Part number: | AO4409 |
| Description: | MOSFET P-CH 30V 15A 8SOIC |
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Alpha and Omega Semiconductor, Inc." |

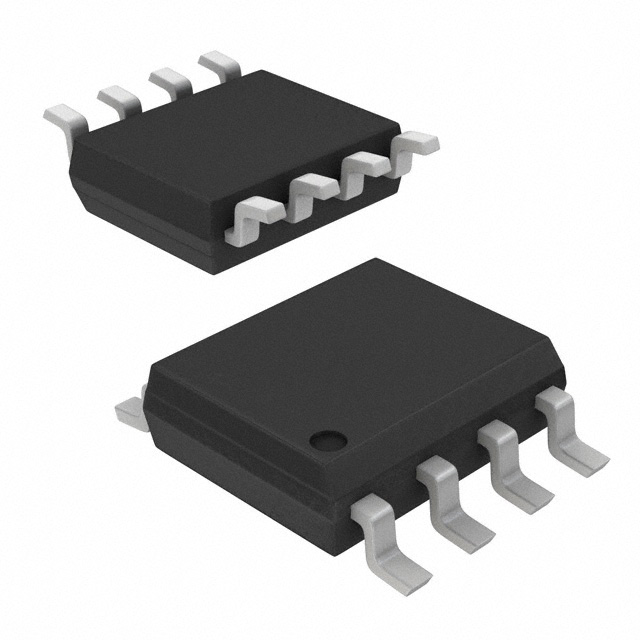

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta) |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 15A, 10V |
| Power Dissipation (Max) | 3.1W (Ta) |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Supplier Device Package | 8-SOIC |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6400 pF @ 15 V |
|
