| Part number: | AO7401 |
| Description: | MOSFET P-CH 30V 1.4A SC70-3 |
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Alpha and Omega Semiconductor, Inc." |

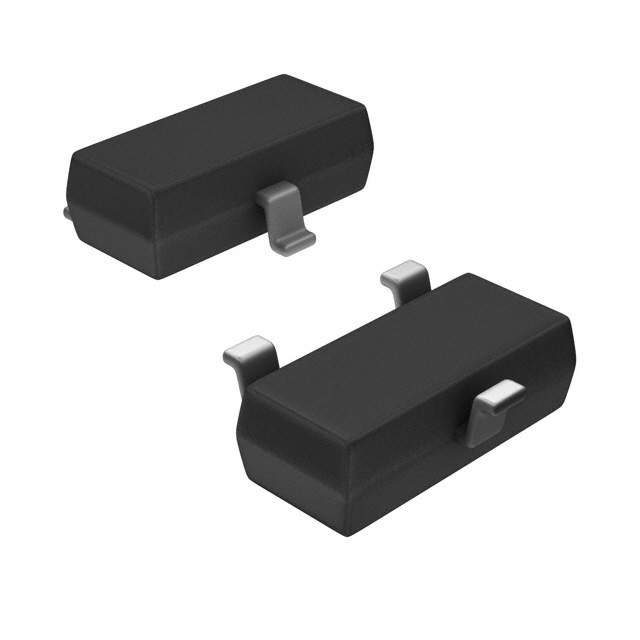

| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 1.2A, 10V |
| Power Dissipation (Max) | 350mW (Ta) |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Supplier Device Package | SC-70-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.06 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 409 pF @ 15 V |
|
