| Part number: | C058270A2 |

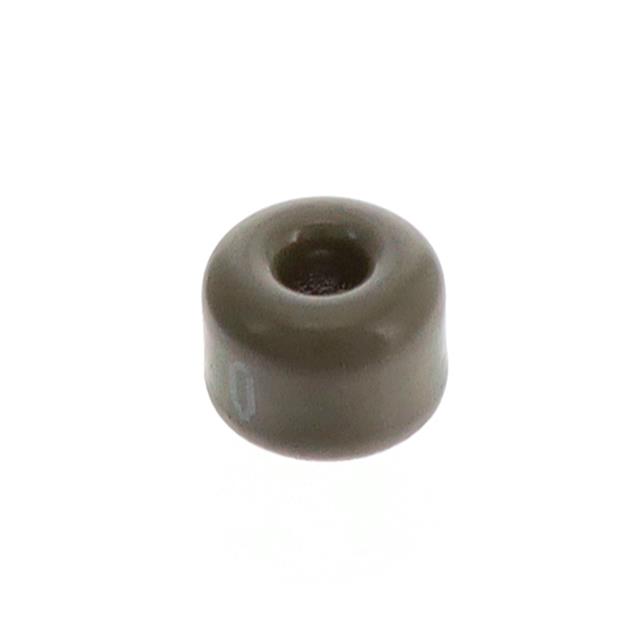

| Description: | FERRITE CORE TOROID 103NH HI FLX |
| Manufacturer | Spang Magnetics (Magnetics) |
| Encapsulation | Bulk |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Spang Magnetics (Magnetics)" |
| Tolerance | ±8% |
| Material | High Flux |
| Diameter | 0.285" (7.24mm) |
| Height | 0.213" (5.40mm) |
| Core Type | Toroid |
| Inductance Factor (Al) | 103 nH |
| Initial Permeability (µi) | 125 |
| Finish | Coated |
| Gap | Ungapped |
| Effective Length (le) mm | 13.6 |
| Effective Area (Ae) mm² | 9.2 |
| Effective Magnetic Volume (Ve) mm³ | 125 |
|
