| Part number: | TM141063 |

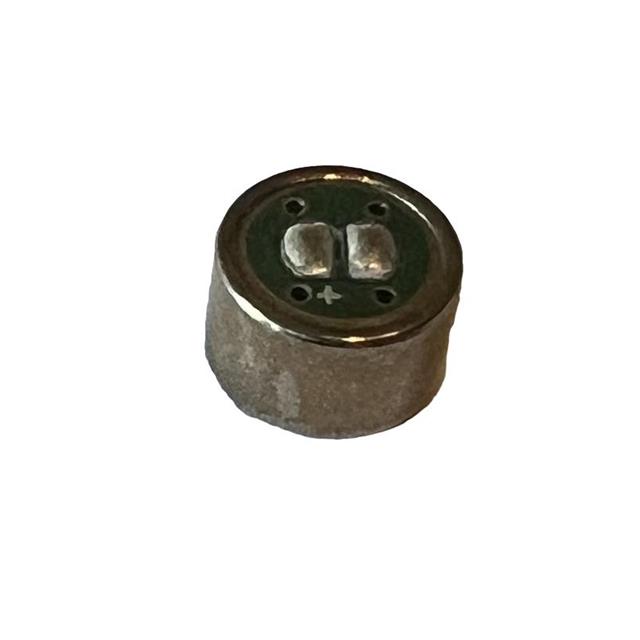

| Description: | Uni (Cardioid) Microphone |
| Manufacturer | Top Shelf Acoustics |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Top Shelf Acoustics" |
| Output Type | Analog |
| Size / Dimension | 0.228" Dia (5.80mm) |
| Sensitivity | -42dB ±2dB |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 58dB |
| Termination | Solder Pads |
| Direction | Cardioid |
| Port Location | Bottom |
| Height (Max) | 0.142" (3.60mm) |
| Voltage - Rated | 2 V |
| Impedance | 2.2 kOhms |
| Current - Supply | 500 µA |
| Voltage Range | 1 V ~ 10 V |
| Frequency Range | 50 Hz ~ 10 kHz |
|
