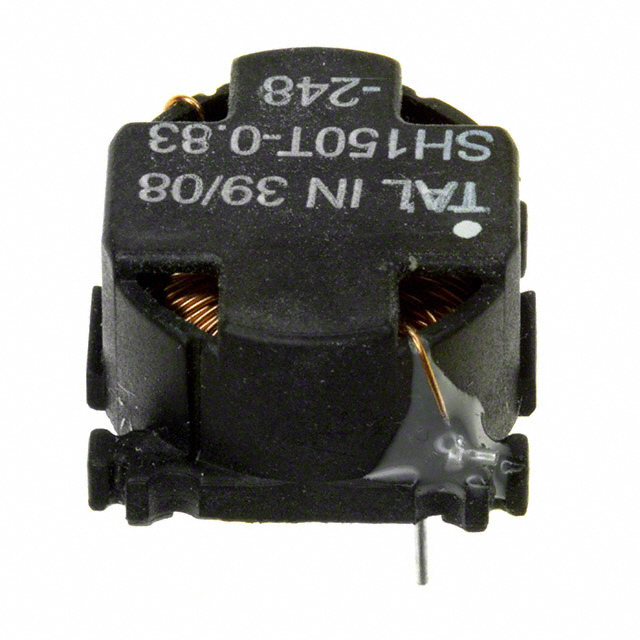

| Part number: | SH150T-0.83-248 |
| Description: | FIXED IND 248UH 830MA 600MOHM TH |
| Manufacturer | Amgis |
| Encapsulation | Tray |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amgis" |
| Tolerance | ±20% |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Size / Dimension | 0.614" L x 0.591" W (15.60mm x 15.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 600mOhm |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.358" (9.10mm) |
| Inductance | 248 µH |
| Current Rating (Amps) | 830 mA |
|
