| Part number: | CMI-5247TF-K |

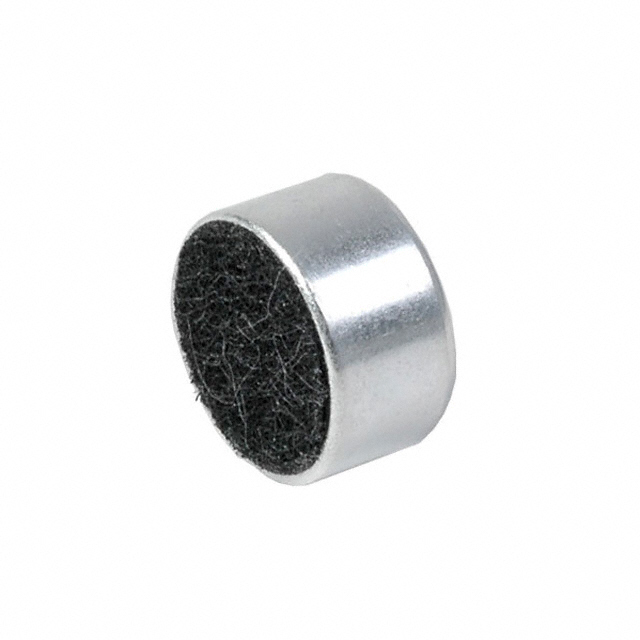

| Description: | MIC COND ANLG UNI -47DB 0.382"D |
| Manufacturer | CUI Devices |
| Encapsulation | Box |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CUI Devices" |
| Output Type | Analog |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Sensitivity | -47dB ±3dB @ 94dB SPL |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 60dB |
| Termination | Solder Pads |
| Direction | Unidirectional |
| Port Location | Top |
| Height (Max) | 0.213" (5.40mm) |
| Impedance | 680 Ohms |
| Current - Supply | 500 µA |
| Voltage Range | 1.5 V ~ 10 V |
| Frequency Range | 70 Hz ~ 20 kHz |
|
