| Part number: | SMP5484 |
| Description: | JFET N-Channel -25V Low Ciss |
| Manufacturer | InterFET |
| Encapsulation | Strip |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "InterFET" |

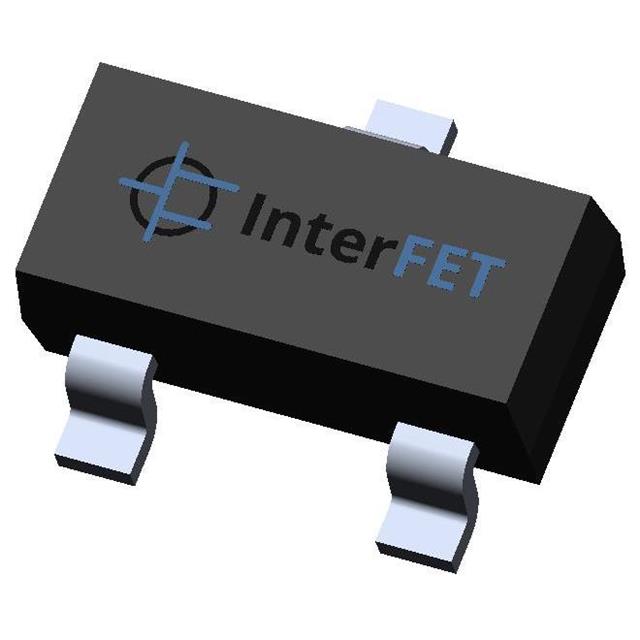

| Package / Case | SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 3.5pF @ 15V |
| Supplier Device Package | SOT-23-3 |
| Drain to Source Voltage (Vdss) | 25 V |
| Power - Max | 350 mW |
| Resistance - RDS(On) | 320 Ohms |
| Voltage - Cutoff (VGS off) @ Id | 1.5 V @ 10 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 2.5 mA @ 15 V |
|
