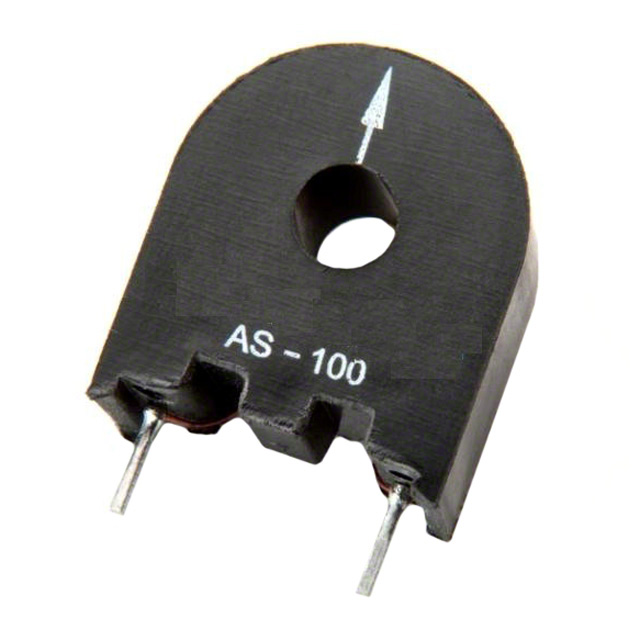

| Part number: | AS-100 |
| Description: | CURR SENSE XFMR 1:50 T/H |
| Manufacturer | Amgis |
| Encapsulation | Tray |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amgis" |
| Size / Dimension | 0.677" L x 0.375" W (17.20mm x 9.53mm) |
| Mounting Type | Through Hole |
| Type | Non-Invasive (Solid Core) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 600mOhm Max |
| Turns Ratio - Primary:Secondary | 1:50 |
| ET (Volt-Time) | 175VµS |
| Frequency Range | 20kHz ~ 200kHz |
| Height - Seated (Max) | 0.803" (20.40mm) |
| Inductance | 6 mH |
|
