| Part number: | 3782-10P-270A 100 |

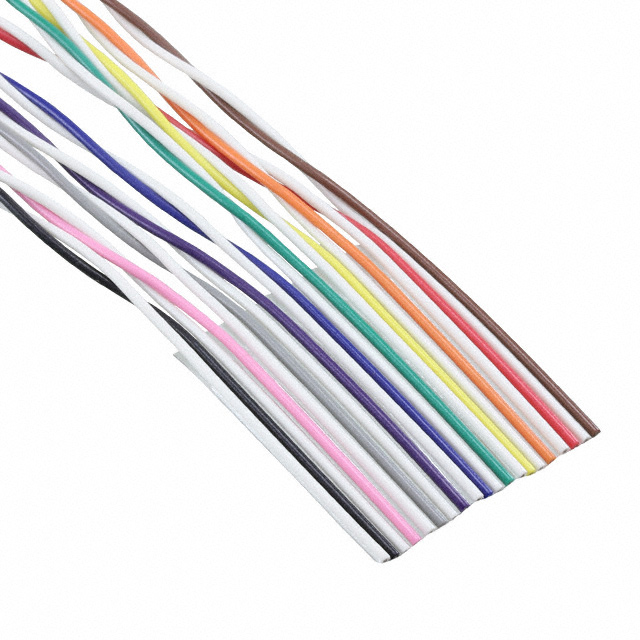

| Description: | CBL RIBN 20COND TWIST-PAIR 100' |
| Manufacturer | 3M |
| Encapsulation | Spool |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Zippable |
| Length | 100.0' (30.48m) |
| Wire Gauge | 28 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Strand | 7 Strands / 36 AWG |
| Pitch | 0.050" (1.27mm) |
| Operating Temperature | -20°C ~ 80°C |
| Number of Conductors | 20 (10 Pair Twisted) |
| Cable Type | Flat Twisted Pair |
| Conductor Material | Copper, Tinned |
| Jacket Color | Multiple |
| Insulation Resistance | 10GOhm |
| Ribbon Thickness | 0.035" (0.89mm) |
| Ribbon Width | 1.000" (25.40mm) |
| Voltage | 300 V |
|
