| Part number: | 0209.800DRT1P |

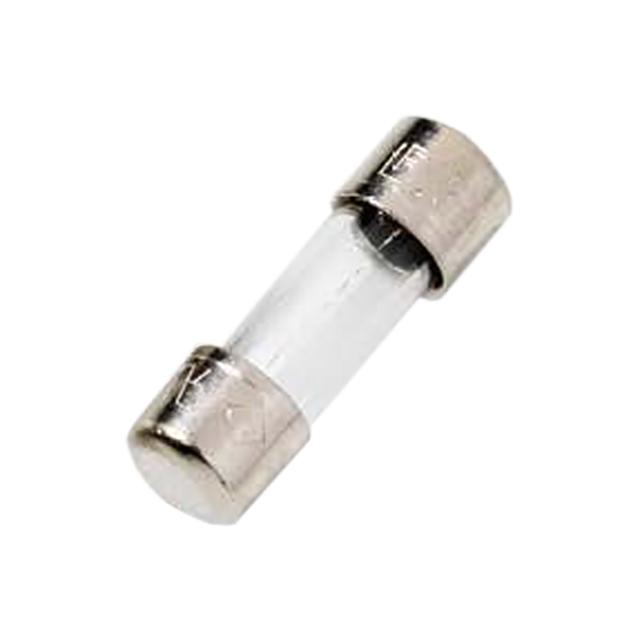

| Description: | FUSE GLASS 800MA 350VAC 2AG |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 2AG, 5mm x 15mm (Axial) |
| Size / Dimension | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Requires Holder |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | CE, cULus |
| DC Cold Resistance | 0.304 Ohms |
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | 350 V |
| Melting I²t | 3.45 |
|
