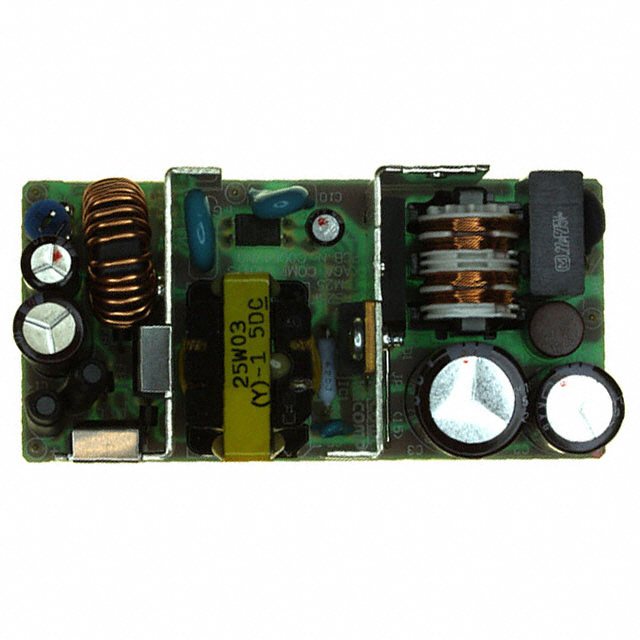

| Part number: | KRS25F-03 |
| Description: | AC/DC CONVERTER 3.3V 25W |
| Manufacturer | Volgen (Kaga Electronics USA) |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Volgen (Kaga Electronics USA)" |
| Features | Adjustable Output, Universal Input |
| Package / Case | 5-DIP Module |
| Size / Dimension | 3.35" L x 1.61" W x 0.91" H (85.0mm x 41.0mm x 23.0mm) |
| Mounting Type | Through Hole |
| Voltage - Input | 85 ~ 264 VAC |
| Type | Open Frame |
| Weight | 0.22 lb (99.79 g) |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial) |
| Approval Agency | IEC |
| Efficiency | 69% |
| Current - Output (Max) | 6A |
| Load Regulation | 100mV |
| Voltage - Output 1 | 3.3V |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Standard Number | 60950-1 |
|
