| Part number: | IRGP30B120KDPBF |
| Description: | IGBT 1200V 60A 300W TO247AC |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Bag |
| Quantity | 400 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

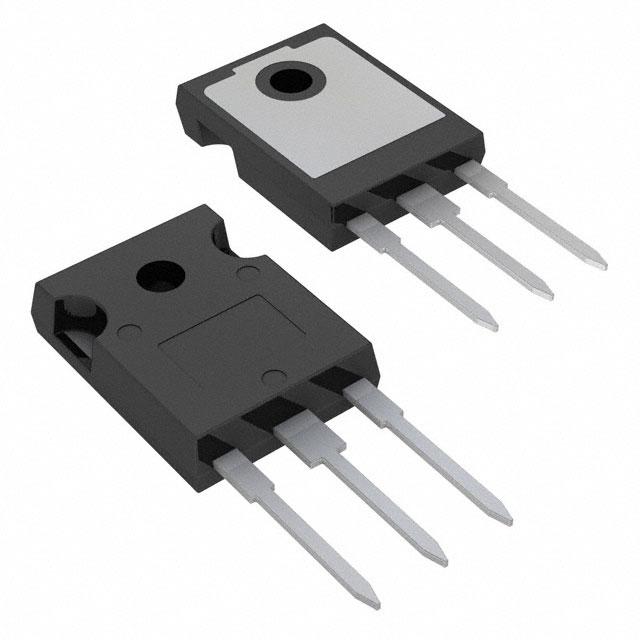

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 300 ns |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 60A |
| Supplier Device Package | TO-247AC |
| IGBT Type | NPT |
| Switching Energy | 1.07mJ (on), 1.49mJ (off) |
| Test Condition | 600V, 25A, 5Ohm, 15V |
| Gate Charge | 169 nC |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 300 W |
|
