| Part number: | SRX2939018R6JB |

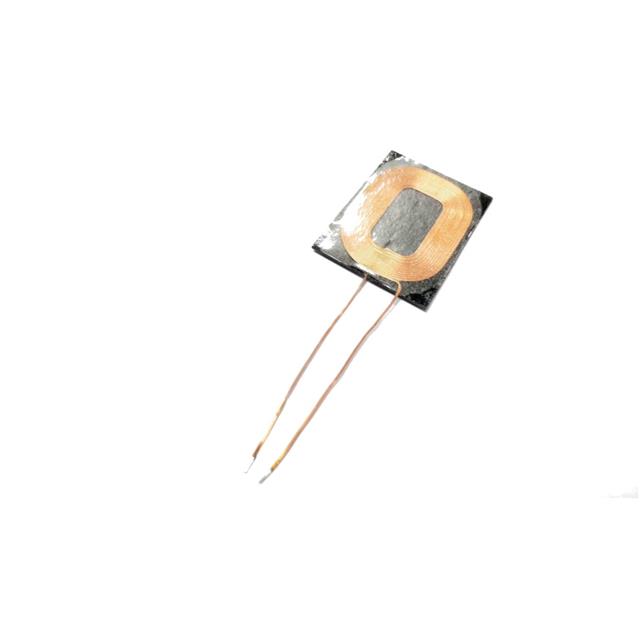

| Description: | RX 1 COIL 2 LAYER 8.6UH 2400MA |
| Manufacturer | Superworld Electronics |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Superworld Electronics" |
| Tolerance | ±5% |
| Inductance | 8.6µH |
| Size / Dimension | 1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm) |
| Current Rating (Amps) | 2.4A |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 165mOhm Max |
|
