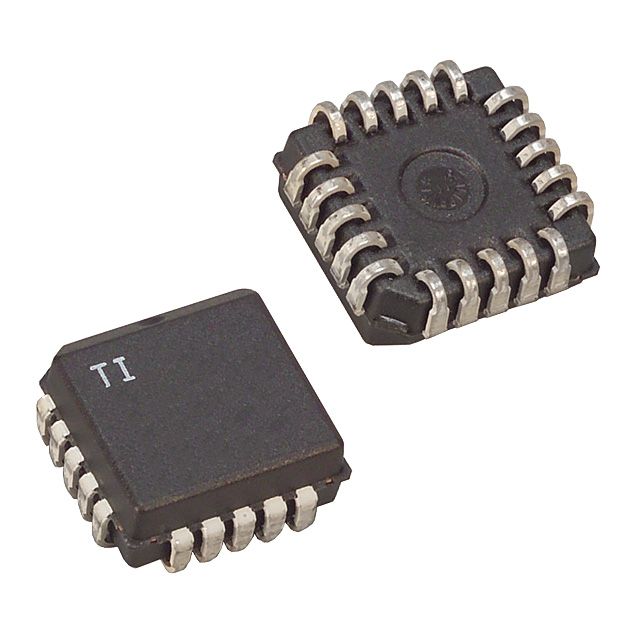

| Part number: | UC3526AQ |
| Description: | IC REG CTRLR MULT TOP 20PLCC |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 46 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1Hz ~ 600kHz |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 35V |
| Supplier Device Package | 20-PLCC (9x9) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Reset, Soft Start |
| Output Phases | 1 |
| Duty Cycle (Max) | 49% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
|
