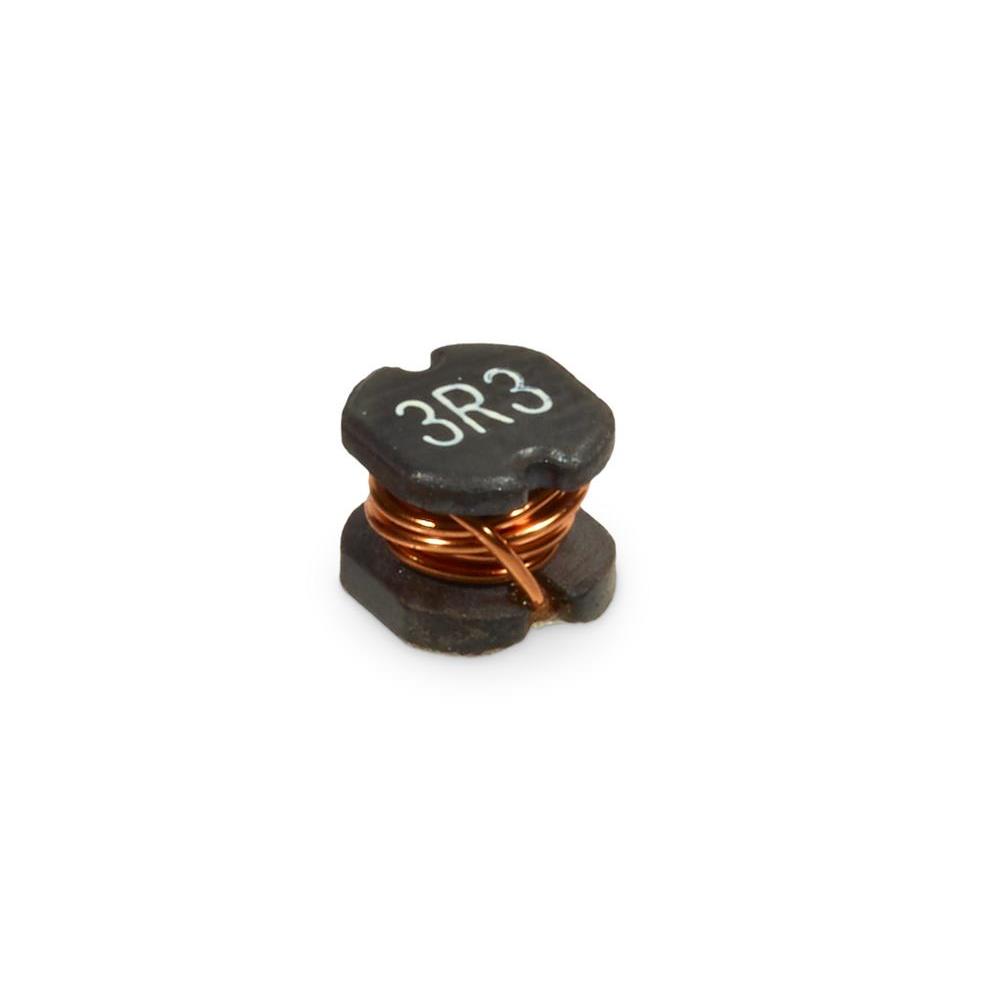

| Part number: | TCK-156 |
| Description: | INDUCTORS |
| Manufacturer | TRACO Power |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TRACO Power" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 180mOhm Max |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | 0.199" (5.05mm) |
| Inductance | 22 µH |
| Current Rating (Amps) | 1.1 A |
|
