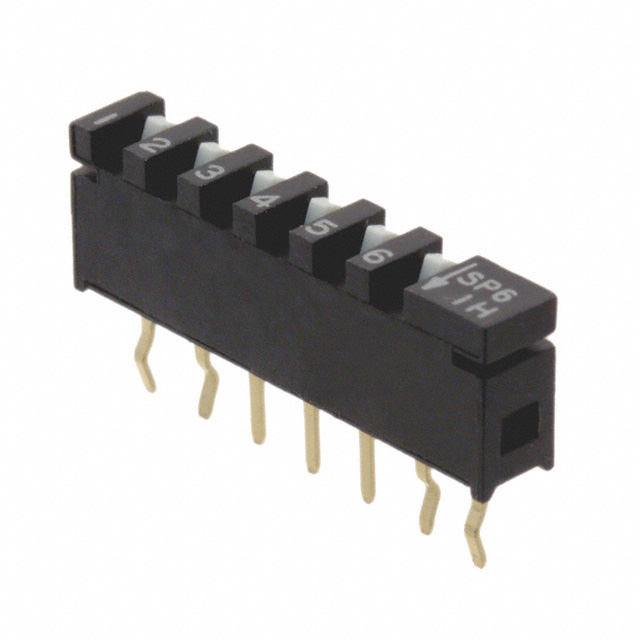

| Part number: | SPA06B |
| Description: | SWITCH SLIDE DIP SPST 0.01A 20V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Contact Finish | Gold |
| Voltage Rating | 20VDC |
| Current Rating (Amps) | 10mA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -30°C ~ 60°C |
| Termination Style | PC Pin |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.244" (6.20mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Beryllium Copper |
| Number of Positions | 6 |
|
