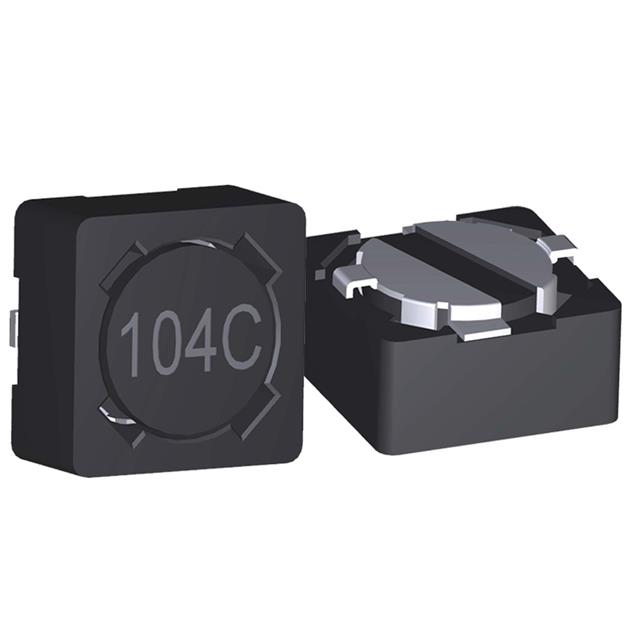

| Part number: | 46541C |
| Description: | FIXED IND 540NH 7.7A 10 MOHM SMD |
| Manufacturer | Murata Power Solutions |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Murata Power Solutions" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 10mOhm Max |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.179" (4.55mm) |
| Inductance | 540 nH |
| Current Rating (Amps) | 7.7 A |
|
