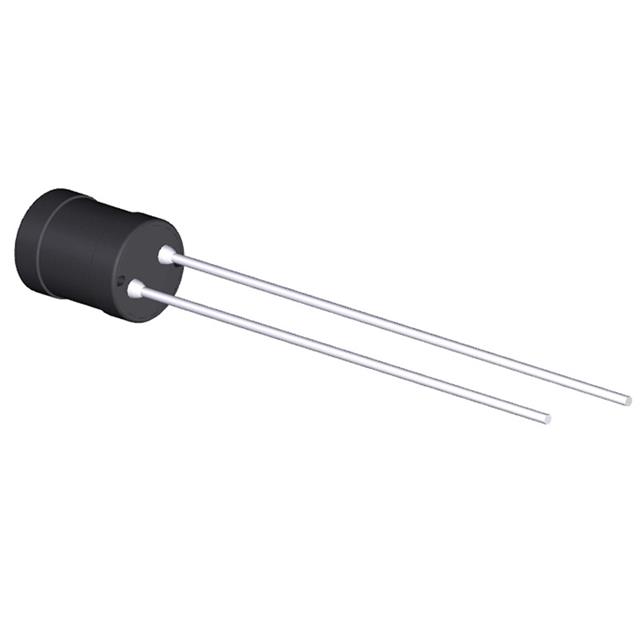

| Part number: | 22R223C |
| Description: | FIXED IND 22UH 1.08A 90 MOHM TH |
| Manufacturer | Murata Power Solutions |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Murata Power Solutions" |
| Tolerance | ±10% |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.256" Dia (6.50mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -25°C ~ 70°C |
| DC Resistance (DCR) | 90mOhm Max |
| Q @ Freq | 50 @ 500kHz |
| Frequency - Self Resonant | 17MHz |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Inductance | 22 µH |
| Current Rating (Amps) | 1.08 A |
|
