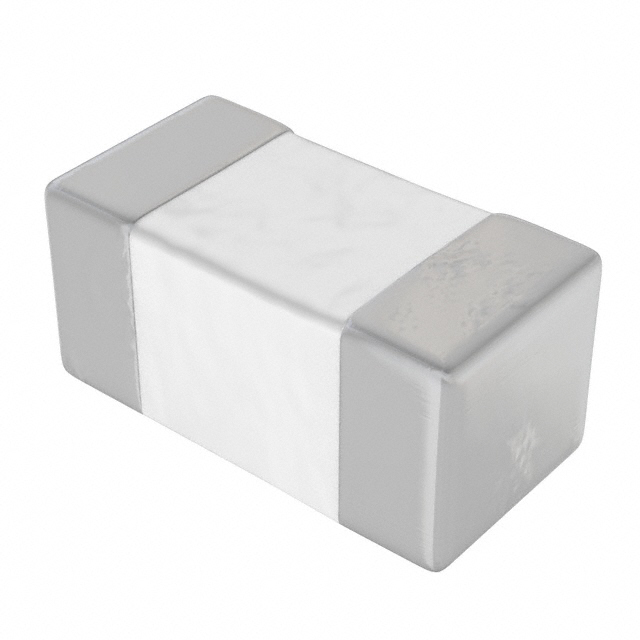

| Part number: | LRC0402CS3N6GV001T |
| Description: | FIXED IND 3.6NH 300MA 210MOHM SM |
| Manufacturer | Johanson Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 10000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Johanson Technology" |
| Tolerance | ±0.3nH |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 100°C |
| DC Resistance (DCR) | 210mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 7.5GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Inductance | 3.6 nH |
| Current Rating (Amps) | 300 mA |
|
