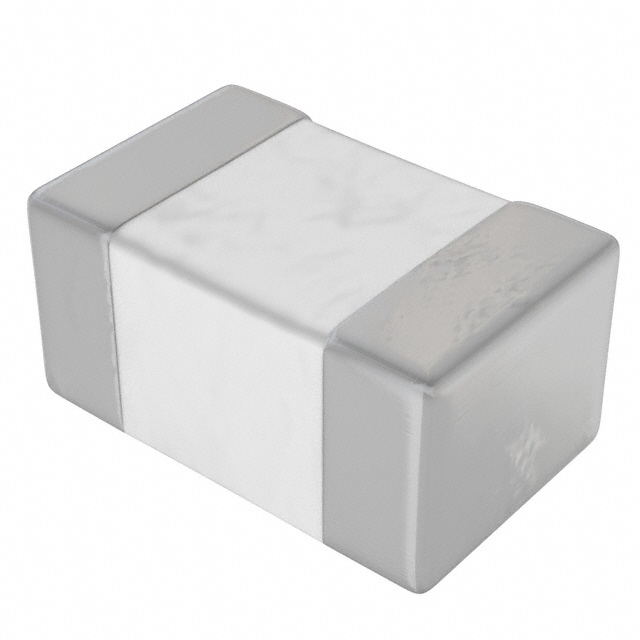

| Part number: | LRW0805WK12NGG001E |
| Description: | FIXED IND 12NH 600MA 80 MOHM SMD |
| Manufacturer | Johanson Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Johanson Technology" |
| Tolerance | ±10% |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 60 @ 500MHz |
| Frequency - Self Resonant | 4.1GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 150 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Inductance | 12 nH |
| Current Rating (Amps) | 600 mA |
|
