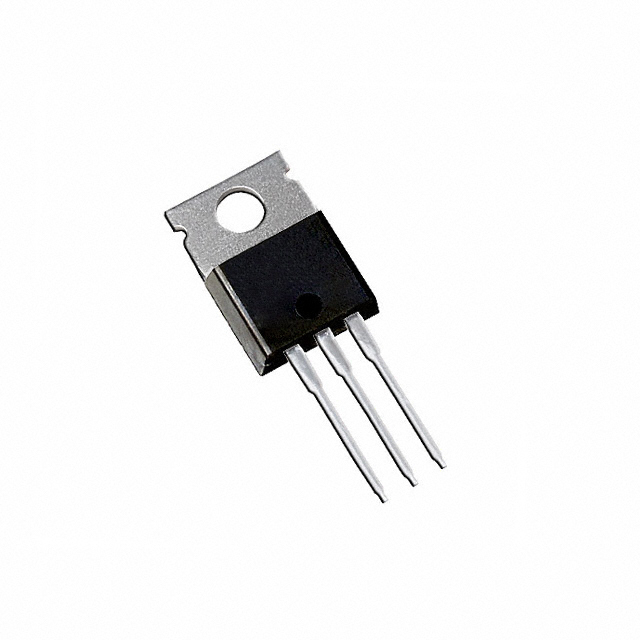

| Part number: | IRGB4060DPBF |
| Description: | IGBT 600V 16A 99W TO220AB |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 60 ns |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 8A |
| Supplier Device Package | TO-220AB |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 30ns/95ns |
| Switching Energy | 70µJ (on), 145µJ (off) |
| Test Condition | 400V, 8A, 47Ohm, 15V |
| Gate Charge | 19 nC |
| Current - Collector (Ic) (Max) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 32 A |
| Power - Max | 99 W |
|
