| Part number: | SBR60A300PT |
| Description: | DIODE ARR SBR 300V 30A TO3P |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |

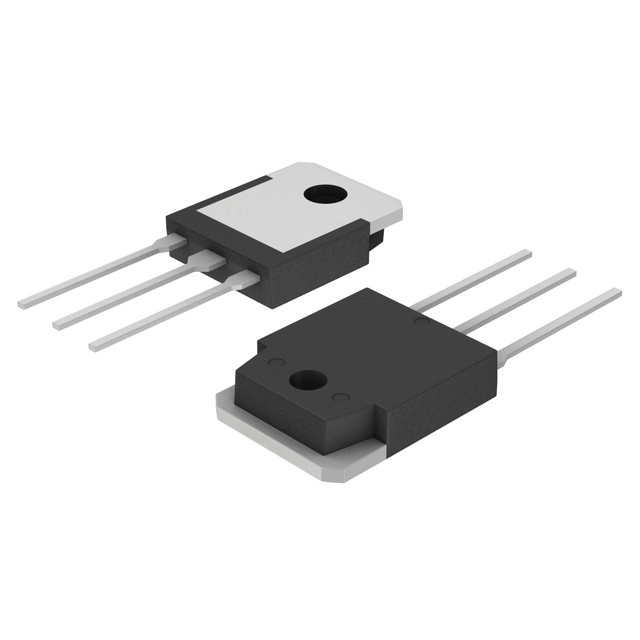

| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Super Barrier |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Supplier Device Package | TO-3P |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 940 mV @ 30 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 300 V |
|
