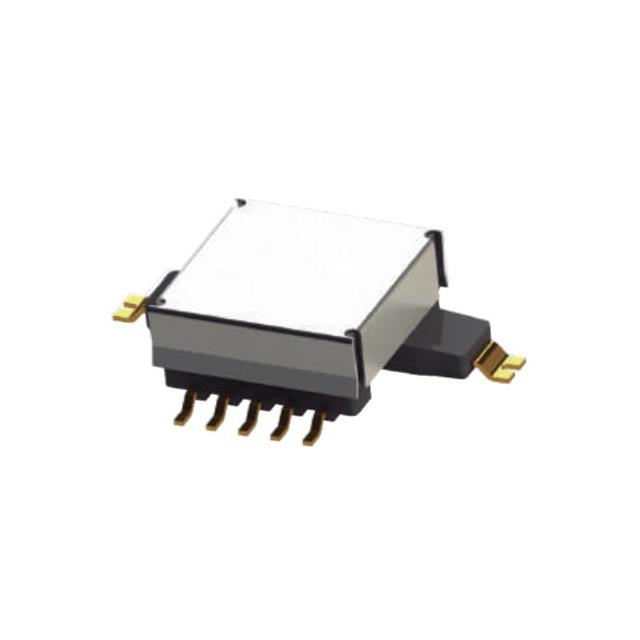

| Part number: | CS-35A |
| Description: | Automotive EV/HEV Isolated SMD C |
| Manufacturer | Premo S.L. |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Premo S.L." |
| Size / Dimension | 0.984" L x 0.689" W (25.00mm x 17.50mm) |
| Mounting Type | Surface Mount |
| Type | Invasive |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 1mOhm Primary, 1.6Ohm Secondary Max |
| Turns Ratio - Primary:Secondary | 1:1000 |
| Frequency Range | 50kHz ~ 250kHz |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Inductance | 5 mH |
| Current Rating (Amps) | 35 A |
|
