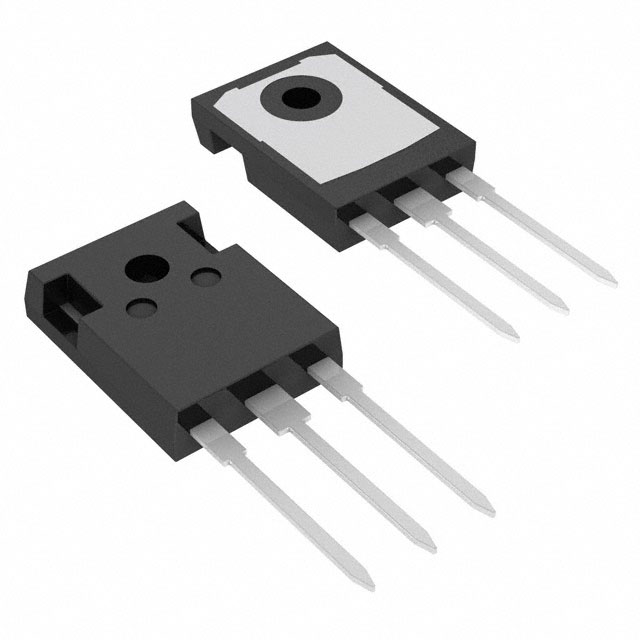

| Part number: | FGH60N60SFTU |
| Description: | IGBT FIELD STOP 600V 120A TO247 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 60A |
| Supplier Device Package | TO-247-3 |
| IGBT Type | Field Stop |
| Td (on/off) @ 25°C | 22ns/134ns |
| Switching Energy | 1.79mJ (on), 670µJ (off) |
| Test Condition | 400V, 60A, 5Ohm, 15V |
| Gate Charge | 198 nC |
| Current - Collector (Ic) (Max) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 180 A |
| Power - Max | 378 W |
|
