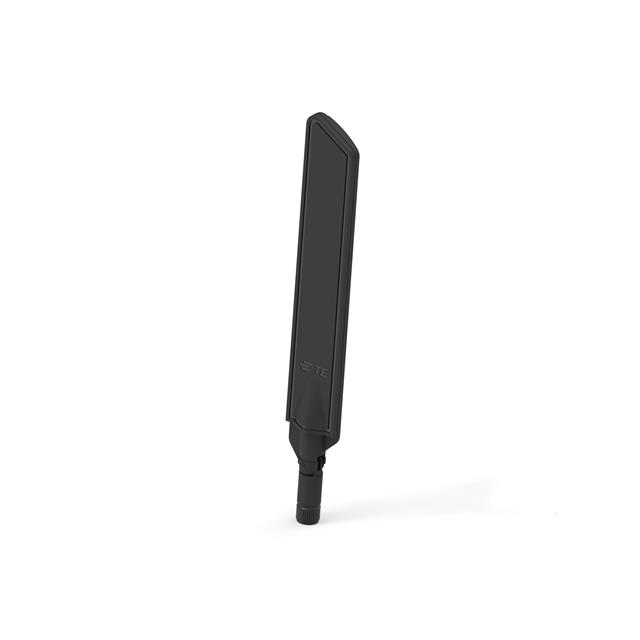

| Part number: | DBA6171C1-BSMAM |
| Description: | DIPOLE,SMAM,SWIVEL,617-7125MHZ,I |
| Manufacturer | TE Connectivity Laird |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity Laird" |
| Mounting Type | Connector Mount |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 6GHz |
| Applications | 4G, 5G, LTE |
| Gain | 0dBi, 1dBi, 1dBi, 2.1dBi, 2.1dBi, 3.9dBi, 4.4dBi |
| Termination | SMA Male |
| Number of Bands | 7 |
| VSWR | 2, 2.3, 2.5, 3.5 |
| Antenna Type | Whip, Straight |
| Height (Max) | 7.244" (184.00mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 829MHz, 1.516GHz, 1.955GHz, 2.5GHz, 3.75GHz, 5.575GHz |
| RF Family/Standard | Cellular |
| Power - Max | 5 W |
|
