| Part number: | 16-4 |

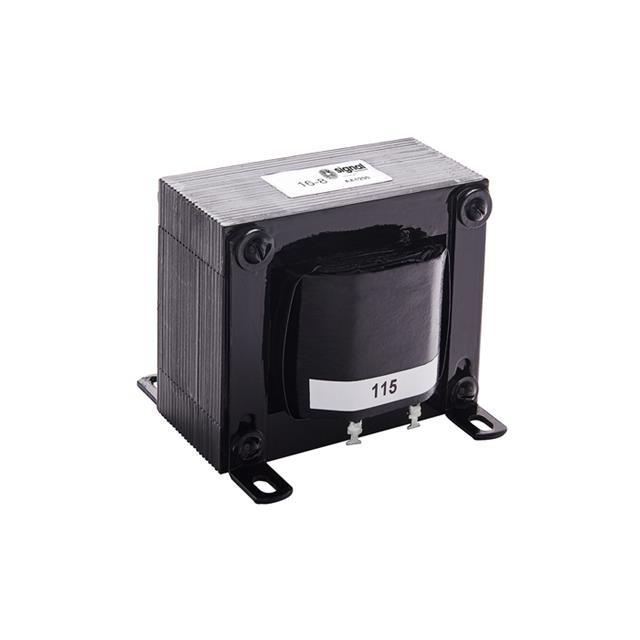

| Description: | PWR XFMR LAMINATED 64VA CHAS MT |
| Manufacturer | Signal Transformer |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Signal Transformer" |
| Size / Dimension | 85.70mm L x 69.90mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 3.3 lbs (1.5 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Single, Multiple Taps |
| Secondary Winding(s) | Single, Multiple Taps |
| Power - Max | 64VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | Parallel 8A, Series 4A |
| Voltage - Primary | 105V, 115V, 125V |
| Height - Seated (Max) | 71.40mm |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V |
| Center Tap | Yes |
|
