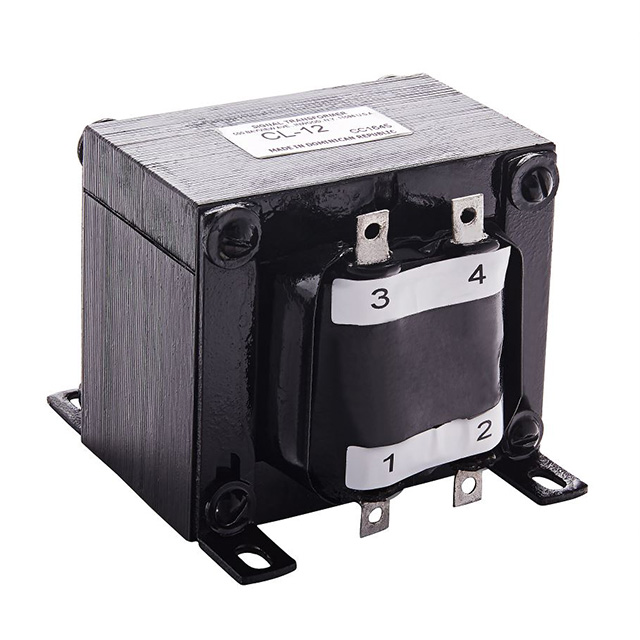

| Part number: | CL-12-24 |
| Description: | INDUCT ARRAY 2COIL 1.2MH CHA MNT |
| Manufacturer | Signal Transformer |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Signal Transformer" |
| Package / Case | Nonstandard |
| Size / Dimension | 3.374" L x 3.563" W (85.70mm x 90.50mm) |
| Mounting Type | Chassis Mount |
| Shielding | Unshielded |
| Height | 2.811" (71.40mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 4.8 mH |
| Inductance - Connected In Parallel | 1.2 mH |
| Current Rating - Parallel | 24 A |
| Current Rating - Series | 12 A |
| DC Resistance (DCR) - Parallel | 13mOhm |
| DC Resistance (DCR) - Series | 52mOhm |
|
