| Part number: | 282119-75 |

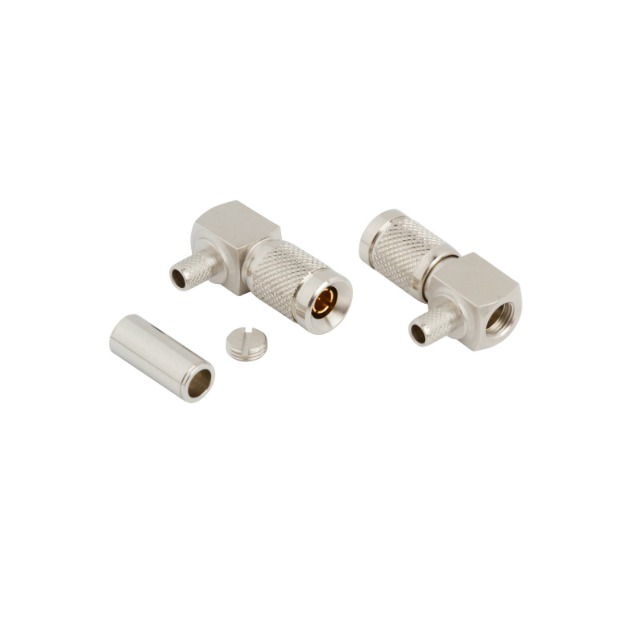

| Description: | CONN 1.0/2.3 PLG R/A 75OHM SOLDR |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bag |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Cable Group | AT&T 735, 735A, Belden 735A1 |
| Operating Temperature | -40°C ~ 75°C |
| Fastening Type | Push-Pull |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule |
| Connector Style | 1.0/2.3 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper; Brass |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
| Voltage Rating | 250 V |
|
