| Part number: | 222167-10 |
| Description: | CONN F JACK STR 75 OHM SOLDER |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-179 Double Braid |
| Operating Temperature | -40°C ~ 140°C |
| Fastening Type | Threaded |

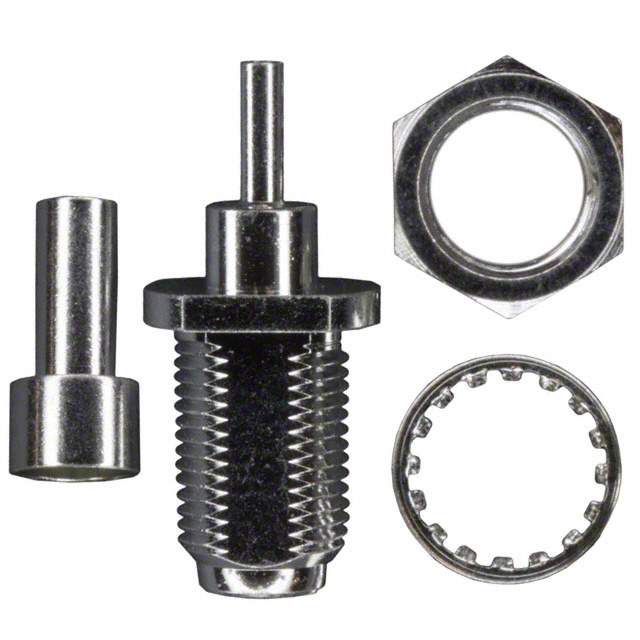

| Includes | 4 pcs - 1 Connector, 1 Ferrule, 1 Lockwasher, 1 Nut |
| Connector Style | F Type |
| Dielectric Material | Polypropylene (PP) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 100 |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Body Finish | Tin |
| Center Contact Plating | Tin |
| Frequency - Max | 3 GHz |
| Number of Ports | 1 |
|
