| Part number: | 222128-10 |

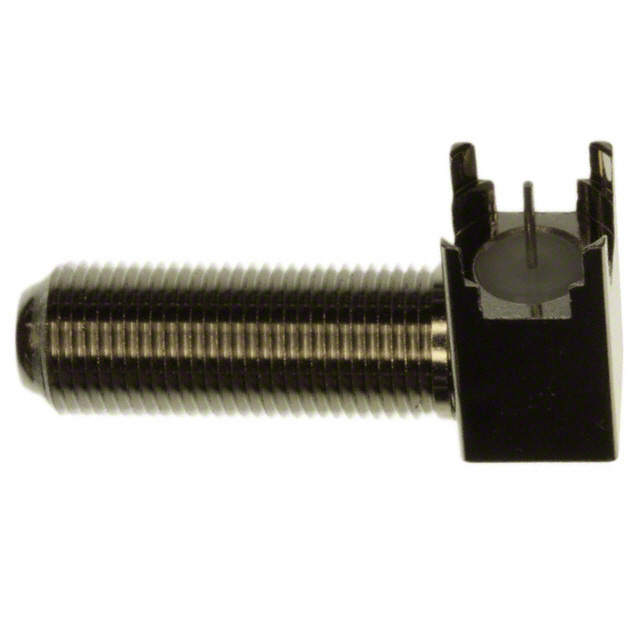

| Description: | CONN F RCPT R/A 75 OHM PCB |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Operating Temperature | -40°C ~ 60°C |
| Fastening Type | Threaded |
| Connector Style | F Type |
| Dielectric Material | Polyoxymethylene (POM) Acetal, Polypropylene (PP) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper, Brass |
| Body Finish | Nickel |
| Center Contact Plating | Tin |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
|
