| Part number: | DPG30C300PB |
| Description: | DIODE ARRAY GP 300V 15A TO220-3 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |

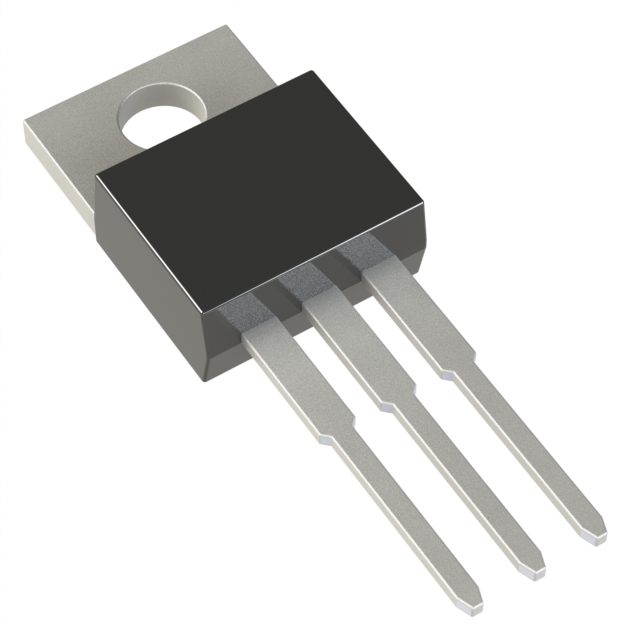

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-220-3 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.26 V @ 15 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 300 V |
|
