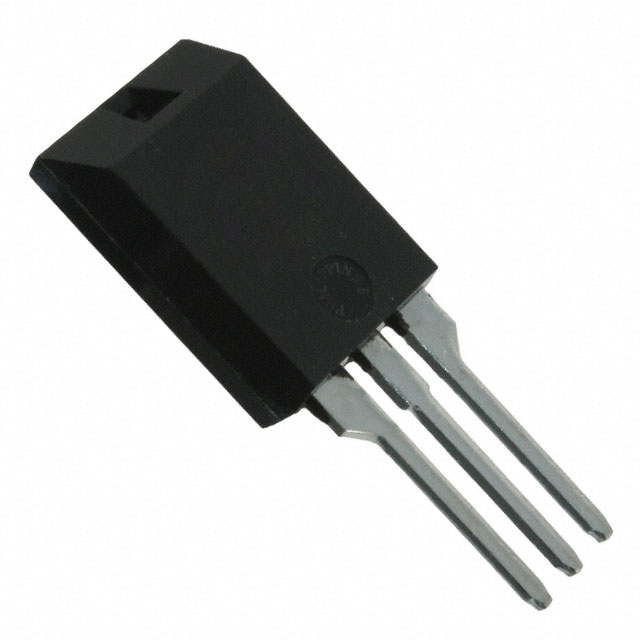

| Part number: | DSEE29-06CC |
| Description: | DIODE ARR GP 600V 30A ISOPLUS220 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | ISOPLUS220™ |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Supplier Device Package | ISOPLUS220™ |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.26 V @ 30 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
|
