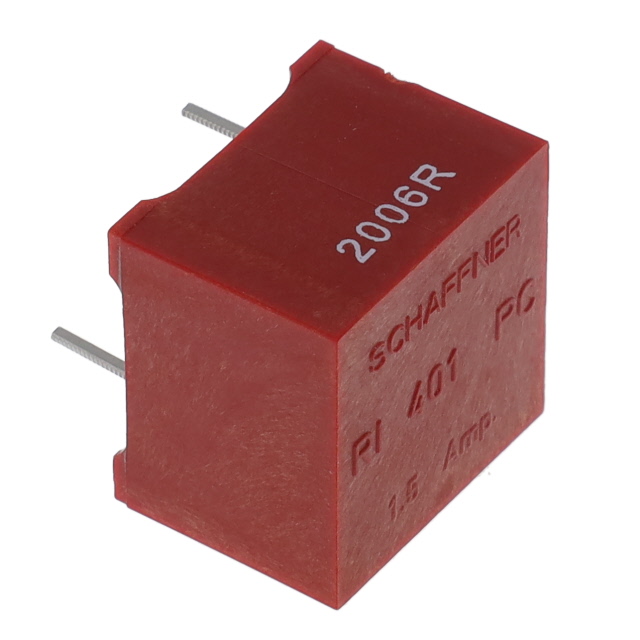

| Part number: | RI401PC |
| Description: | FIXED IND 3MH 1.5A 620 MOHM TH |
| Manufacturer | Schaffner EMC, Inc. |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Schaffner EMC, Inc." |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Size / Dimension | 0.768" L x 0.768" W (19.50mm x 19.50mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 110°C |
| DC Resistance (DCR) | 620mOhm |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Inductance | 3 mH |
| Current Rating (Amps) | 1.5 A |
|
