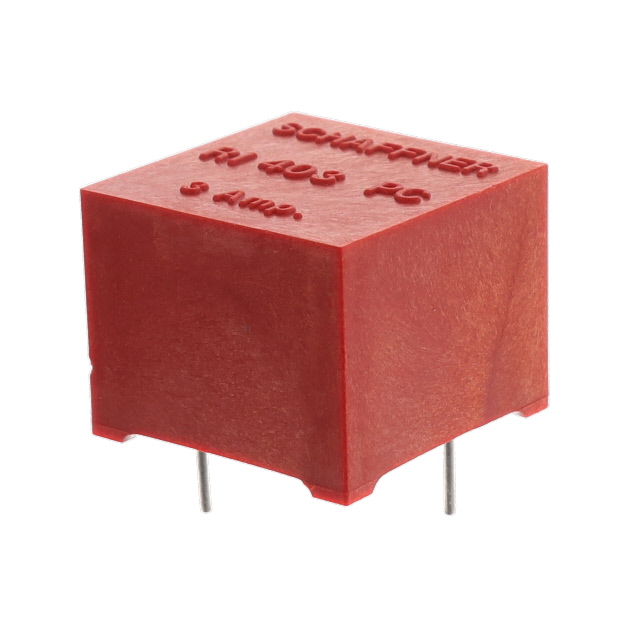

| Part number: | RI403PC |
| Description: | FIXED IND 1.8MH 3A 105 MOHM TH |
| Manufacturer | Schaffner EMC, Inc. |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Schaffner EMC, Inc." |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Size / Dimension | 0.917" L x 0.917" W (23.30mm x 23.30mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 110°C |
| DC Resistance (DCR) | 105mOhm |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Inductance | 1.8 mH |
| Current Rating (Amps) | 3 A |
|
