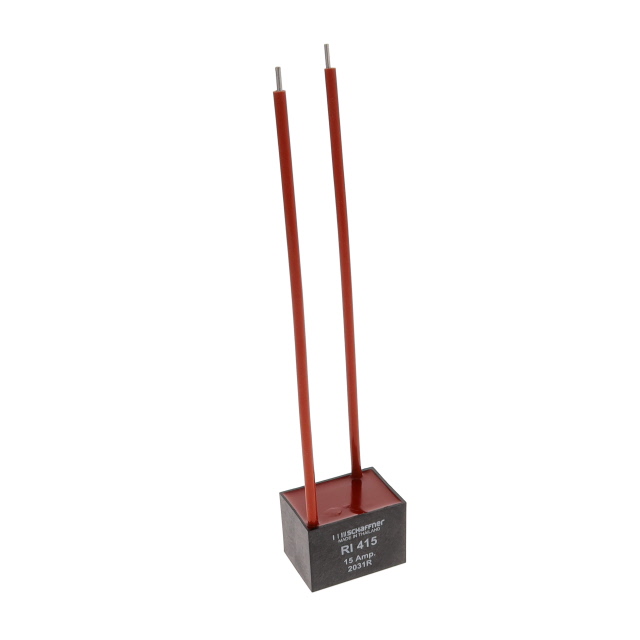

| Part number: | RI415 |
| Description: | FIXED IND 300UH 15A 8 MOHM TH |
| Manufacturer | Schaffner EMC, Inc. |
| Encapsulation | Tray |
| Quantity | 77 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Schaffner EMC, Inc." |
| Package / Case | Radial, Vertical |
| Size / Dimension | 1.929" L x 1.378" W (49.00mm x 35.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 110°C |
| DC Resistance (DCR) | 8mOhm |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | 1.339" (34.00mm) |
| Inductance | 300 µH |
| Current Rating (Amps) | 15 A |
|
