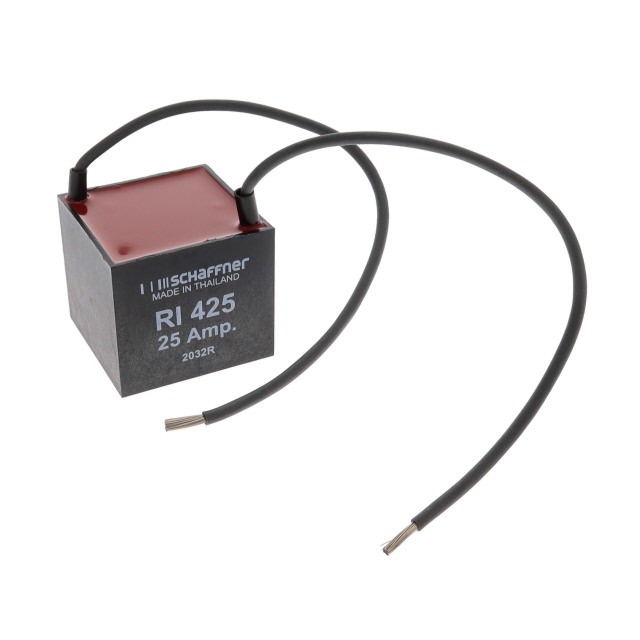

| Part number: | RI425 |
| Description: | FIXED IND 250UH 25A 4 MOHM TH |
| Manufacturer | Schaffner EMC, Inc. |
| Encapsulation | Tray |
| Quantity | 56 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Schaffner EMC, Inc." |
| Package / Case | Radial, Vertical |
| Size / Dimension | 1.890" L x 1.890" W (48.00mm x 48.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 110°C |
| DC Resistance (DCR) | 4mOhm |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | 1.693" (43.00mm) |
| Inductance | 250 µH |
| Current Rating (Amps) | 25 A |
|
