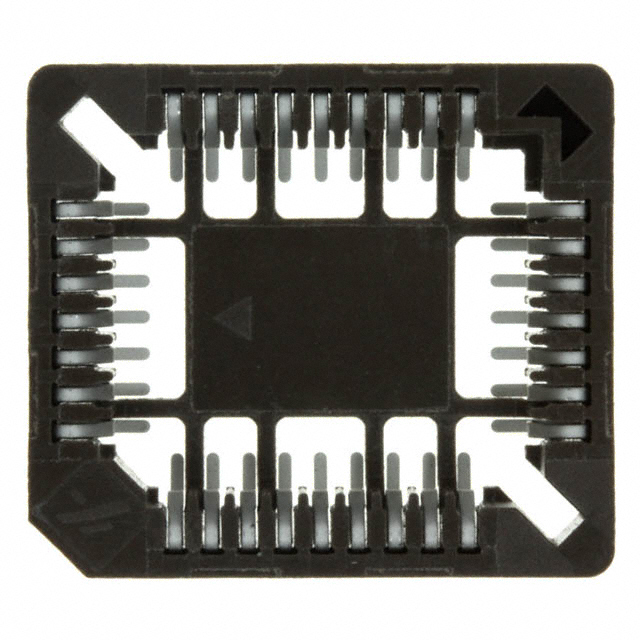

| Part number: | 69802-132LF |
| Description: | CONN SOCKET PLCC 32POS TIN |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Tube |
| Quantity | 28 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Features | Closed Frame |
| Mounting Type | Surface Mount |
| Type | PLCC |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Material - Mating | Phosphor Bronze |
| Pitch - Post | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Material - Post | Phosphor Bronze |
| Contact Resistance | 20mOhm |
| Current Rating (Amps) | 1 A |
|
