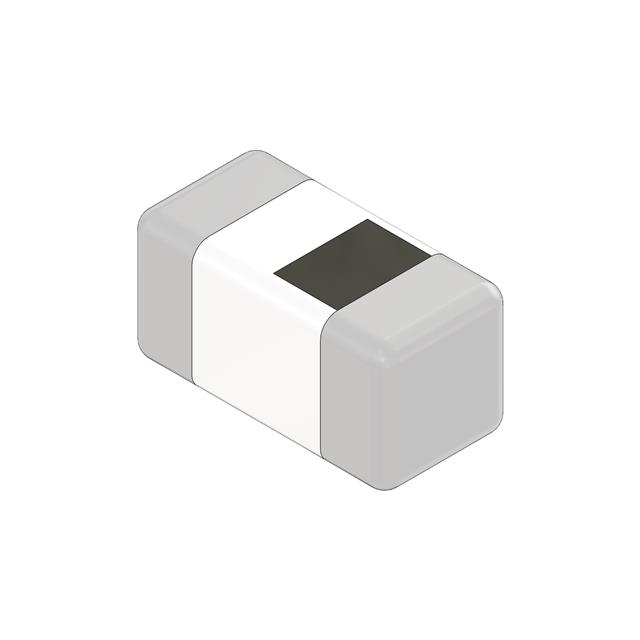

| Part number: | MCI0603TM10NHHBPDG |
| Description: | FIXED IND 0603 10NH 250MA 0.7OHM |
| Manufacturer | INPAQ Technology Co., Ltd. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 15000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "INPAQ Technology Co., Ltd." |
| Tolerance | ±3% |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 3.2GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 500 MHz |
| Supplier Device Package | 0201 |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Inductance | 10 nH |
| Current Rating (Amps) | 250 mA |
|
