| Part number: | WCI2520CP82NGDG |

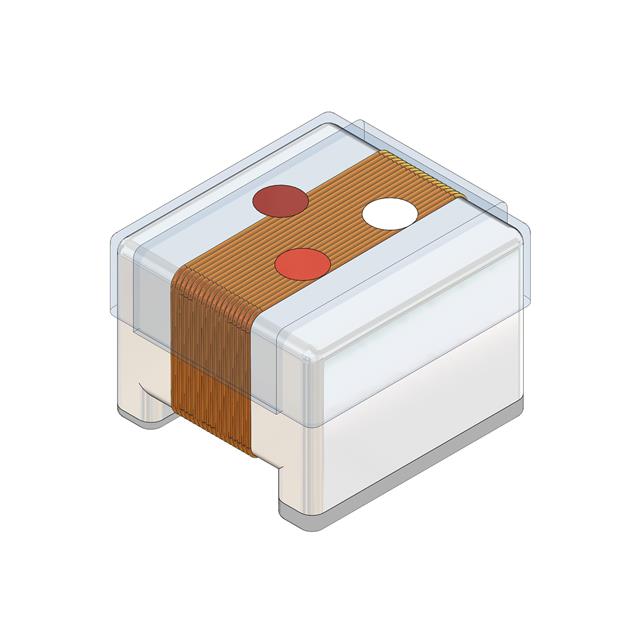

| Description: | CHIP IND 2520,82NH,G,60Q,1.0A,2K |
| Manufacturer | INPAQ Technology Co., Ltd. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "INPAQ Technology Co., Ltd." |
| Tolerance | ±2% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -25°C ~ 125°C |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 60 @ 350MHz |
| Frequency - Self Resonant | 1GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 50 MHz |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Inductance | 82 nH |
| Current Rating (Amps) | 1 A |
|
